Manual Call Points – Iris Series
Conventional alarm buttons. They play a key role within the alarm system, allowing for prompt manual intervention and the ability to interrupt the gas suppression process in the event of a risk or incorrect operation.
IC0020: resettable manual call point with LED visual indication
The IC0020 manual call point is designed to ensure quick and safe activation of the fire alarm system in emergency situations. Equipped with a key-resettable mechanism and supplied with a plastic key, it allows immediate resetting without the need to replace any components. The alarm condition is clearly visible thanks to a coloured band and an LED indicator, making the device status immediately recognisable. In addition, the selectable alarm resistor ensures maximum compatibility with different system configurations. The IC0020 is a practical, reliable and standards-compliant solution for manual fire alarm signalling.
IC0012E: IP67 Manual call point for outdoor use
The IC0012E manual call point is designed to ensure maximum reliability outdoors, thanks to its watertight IP67‑rated housing. Ideal for installation in open areas or in adverse weather conditions, it allows the fire alarm to be activated easily and immediately. Sturdy and durable, it provides an effective solution for extending the fire protection system to external environments.
IC0012E Quick-Activation Manual Alarm Button
The IC0012E call point is designed to ensure rapid and reliable activation in an emergency. Thanks to its high visibility of the alarm status, even in low-light conditions, and its new operating mechanism, it offers maximum safety and ease of use. Made of highly resistant materials, it is easily resettable and compliant with the EN54-1 standard, representing an ideal solution for conventional fire detection systems.
ICB010: non-latching manual call point with automatic reset
ICK010: keyswitch
Integration and Additional Options

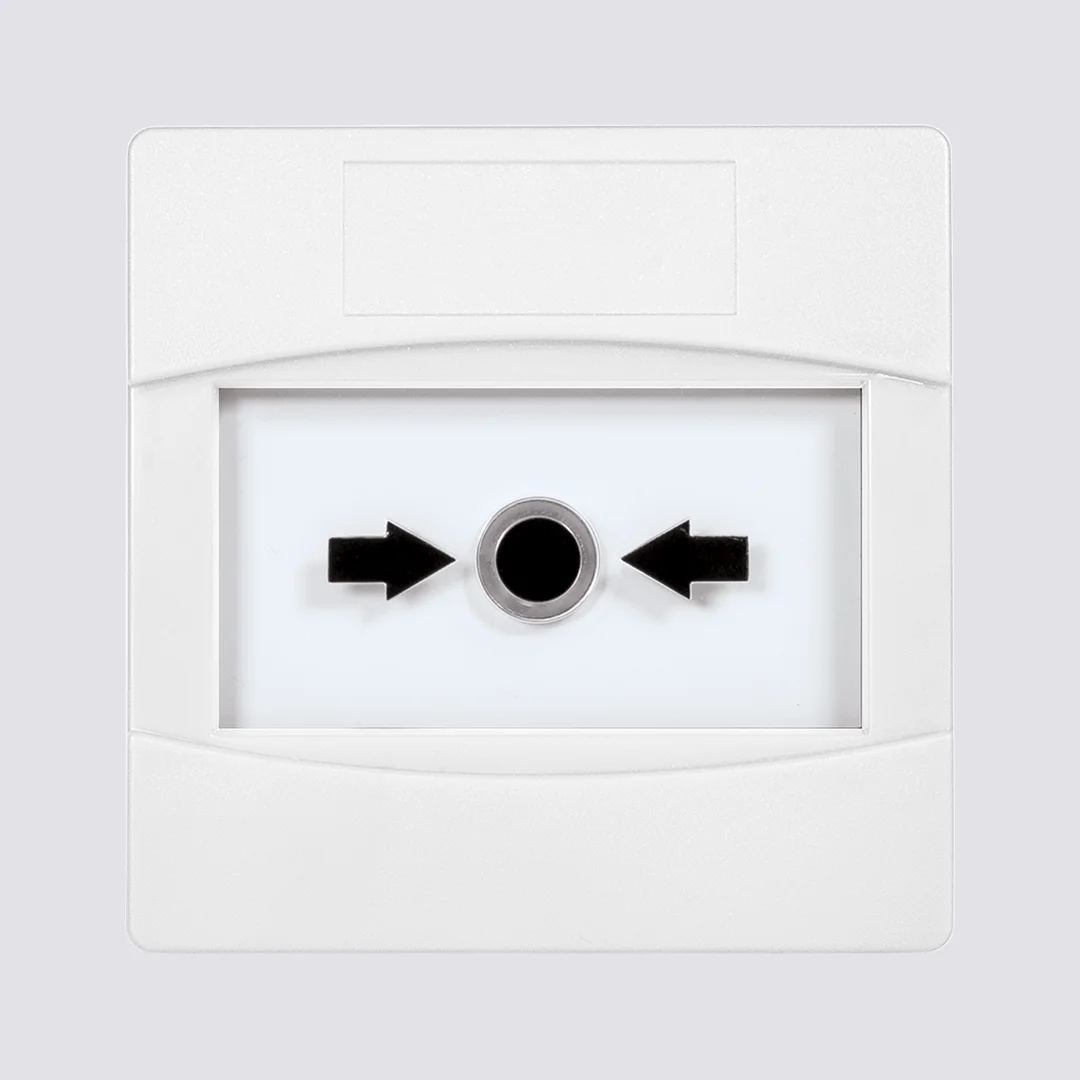

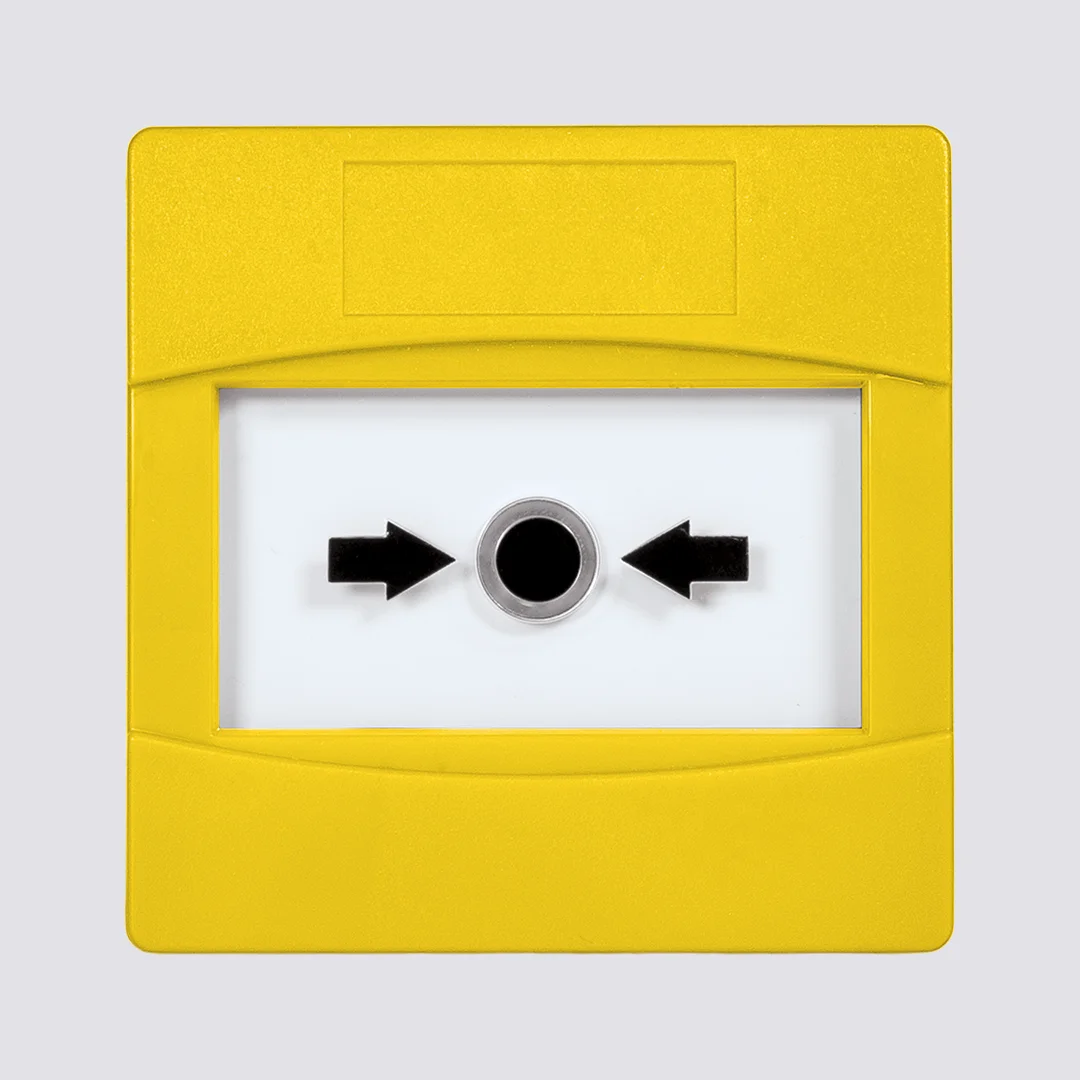

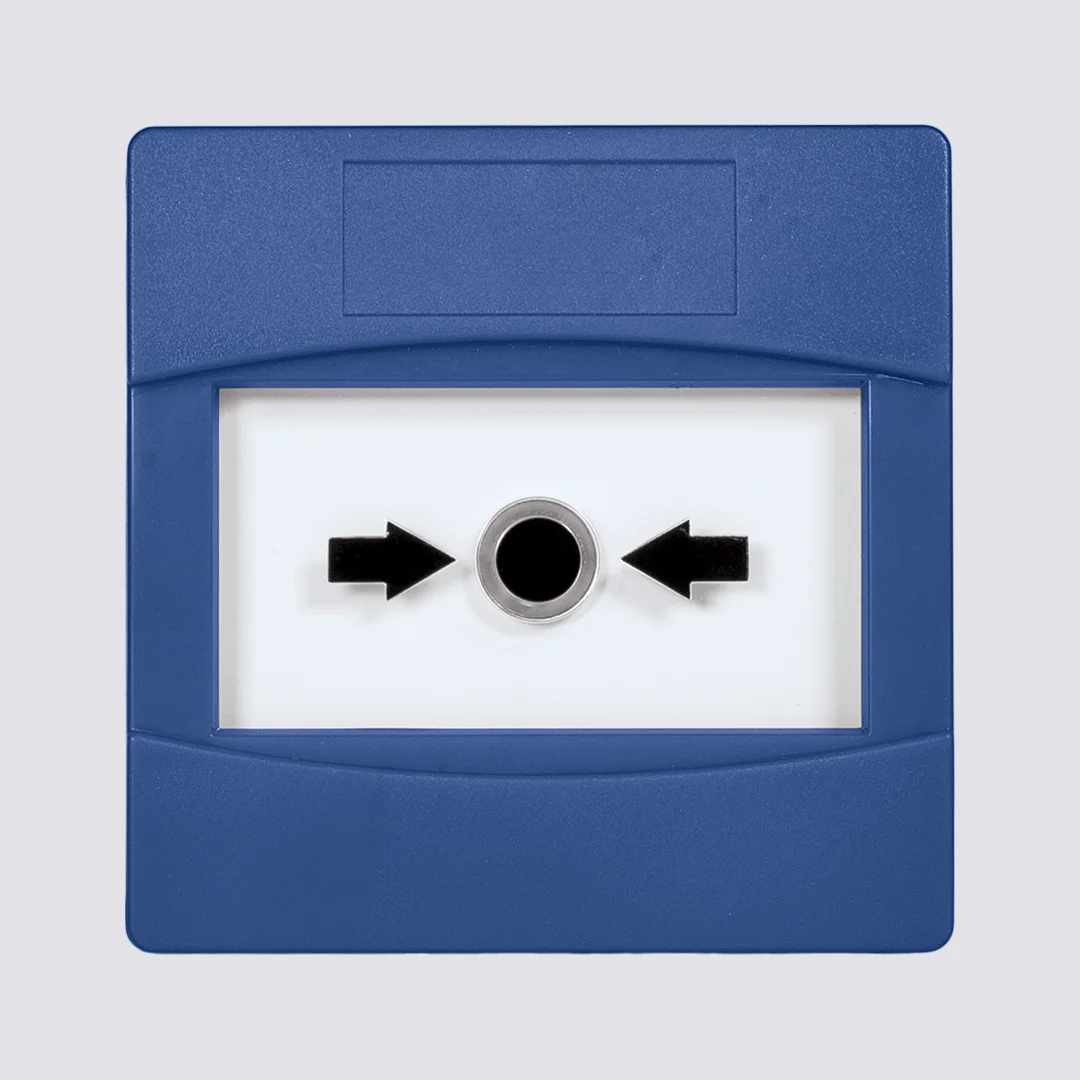

This product is available in the following versions
Technical Specifications
| IC0020 | |
| Power supply voltage | 19–30 Vdc |
| Current draw during standby | 0 μA |
| Temperature | -10° ... +55°C |
| Dimensions | 84 x 84 x 45 mm |
| Deep Base Dimensions | 33 mm |
| Weight | 126 g |
